Product description

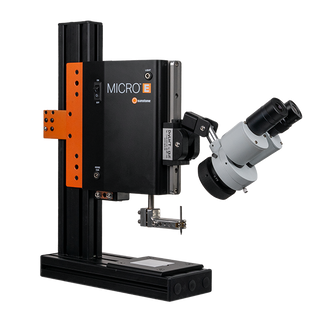

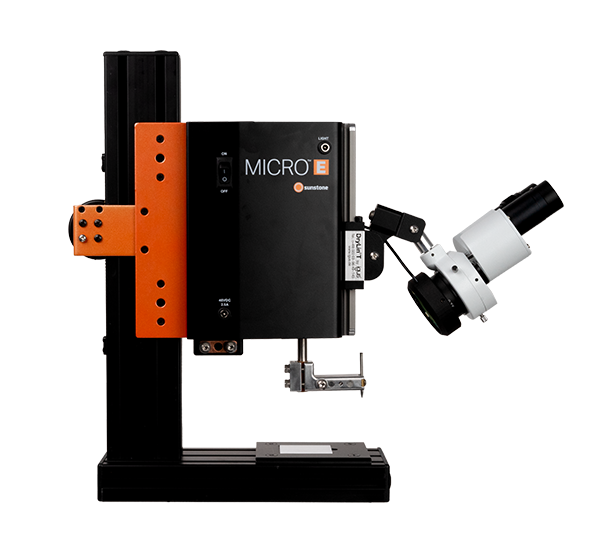

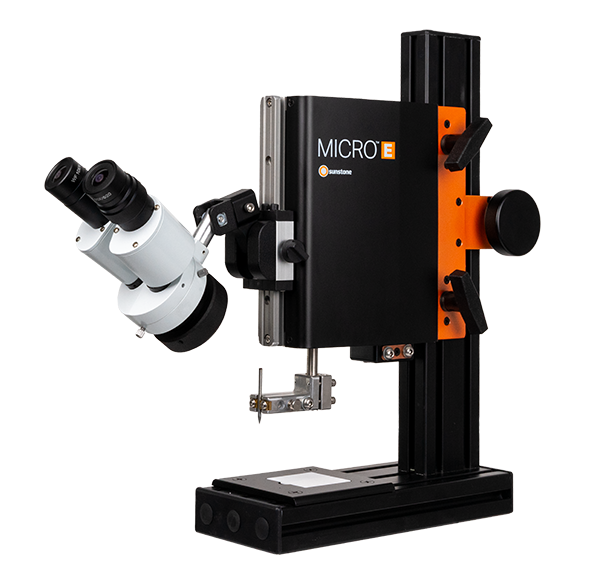

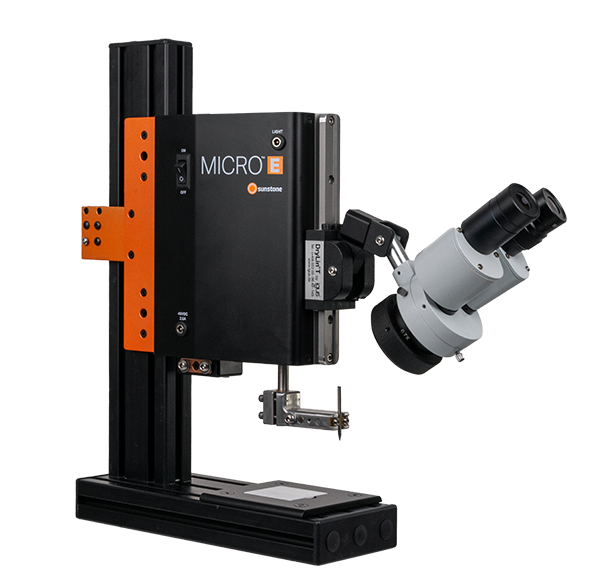

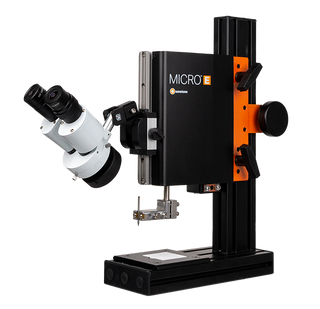

Sunstone Micro E Weld Head
The Sunstone Micro E is an electromagnetic linear motion weld head engineered for ultra-high welding results at the micro level.
With attached 5x microscopic optics and brilliant LED lighting, the Micro E delivers as little as 30 grams in force within 1 micron in accuracy, numbers that surpass competitive weld heads.
Force, position, and displacement feedback adds to the weld head's fit for applications that require precision welding, such as microelectronics, electric motors and coils, actuators, magnetic wire, and any other situation that requires a fine weld in a specific spot for R&D or automated production. Call or text the micro welding experts at +1 801-658-0015 for questions.
Why you need The Sunstone Micro E Micro Weld Head
- Force, Position, & Displacement feedback and monitoring.
- As low as 30 grams of force
- Built in LED lighting
- Included microscope mounted to the front of weld head
Typical Applications
- Microelectronics
- Electric Motors and Coils
- Actuators
- Magnetic Wire
Features
- Electromagnetic Linear Motion for Ultra Precise Positioning
- 30-2000grams Adjustable Weld Head Force
- Positional Accuracy of 1 Micron
- Built-in Force, Position, and Displacement Feedback*
- 5x Microscopic Optics
- Multi-Joint Microscopic Arm for Comfortable Operation
- 300 Lumens LED Lamp
- PLC Compatible
- Removable Ceramic Base Plate
- Rotary Height Adjustment
- 2-Year Warranty Backed by Sunstone's Reputation for Quality and Customer Service
Industries
- Micro electronics
- Electric motors & Coils
- Actuators
- Magnet wire Welding
Micro E Weld Head User Manual
Micro E Weld Head Data Sheet
KEY UNIT SPECIFICATIONS
Tabletop Footprint (L x W x H)56x10.8x45.7 cm w/ Microscope, 14x10.8x45.7 cm w/o Microscope
Unit Weight
10.1 kg w/ Microscope 8.9 kg w/o Microscope
Electrode Stroke (Travel distance) Distance)
25 mm
Force Range
30-2000 grams
Position Displacement Accuracy
±1 Micron
Duty Cycle (30 g to 2 kg Holding Force)
100%
Head Type
PARALLEL, OPPOSED, or THERMOCOMPRESSION
Weld Force Method
DIRECT
ACTUATION METHOD
ELECTROMAGNETIC LINEAR ACTUATOR
THROAT DEPTH
17.8 cm
NUMBER OF SCHEDULES
1,000 + (CREATED VIA PICO WELDER)
ELECTRODE SPEED
HOME POINT TO HOVER POINT: 1-100 mm/sec
HOVER POINT TO WELD POINT: 1-100 mm/sec
Power Input
48 Vdc @ 2.5 A
Welding Current
300 A @ 50% DC
OPERATING TEMPERATURE
0 to 65° C
PROTECTION PLAN
This product is also available online with Circle Plan!
Set-Up Video:
Watch this video and follow along to setup your Micro-E Weld Head with Parallel Gap Electrodes
Need Electrodes? Find them at the links below!
DO YOU NEED TRAINING?
Sunstone's training team is ready to help you master the Micro E Weld Head Visit our Training Page to learn more.
